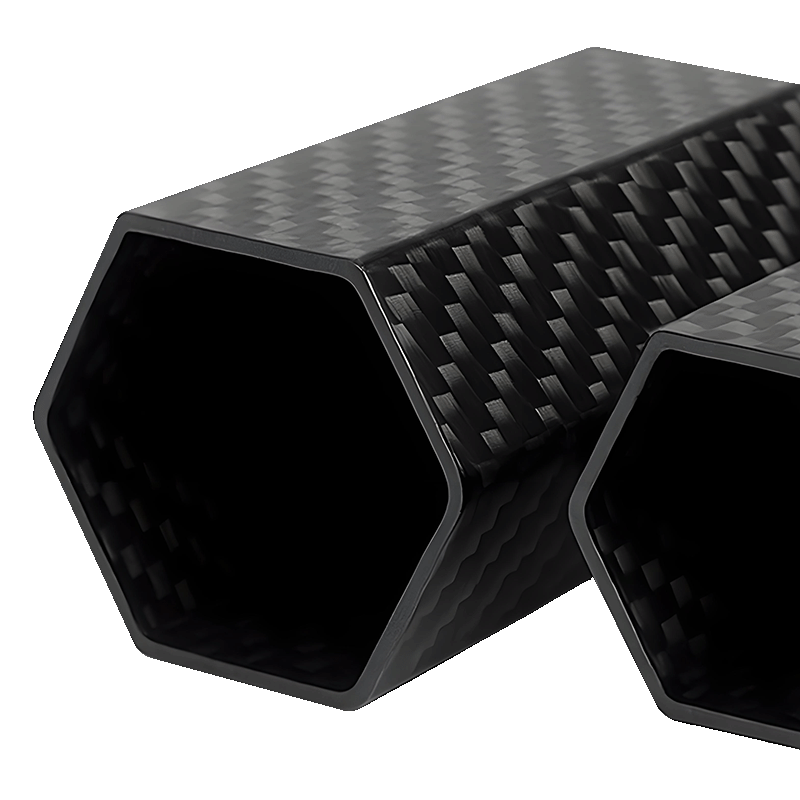

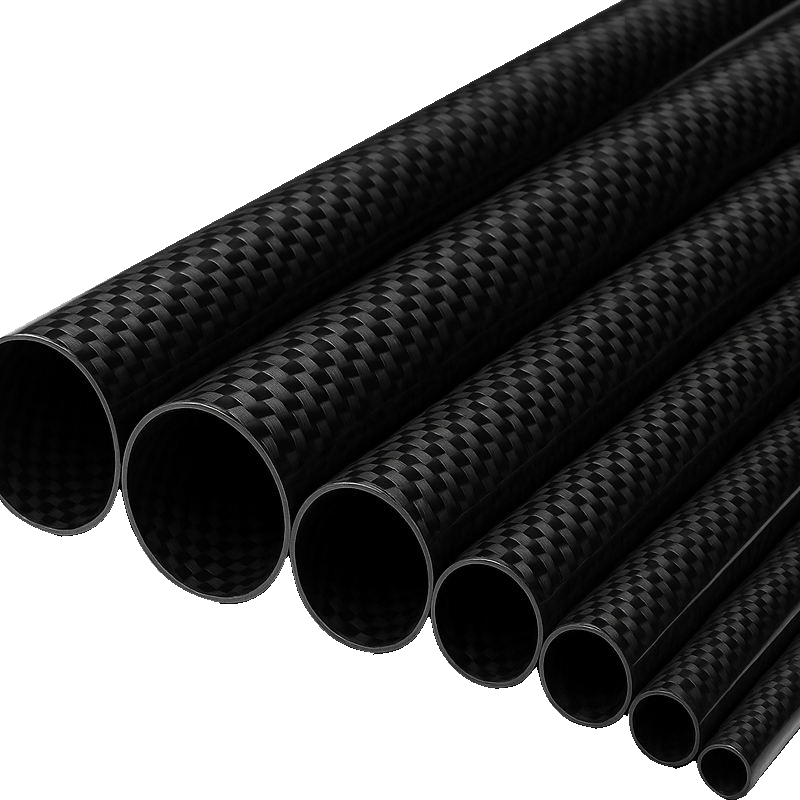

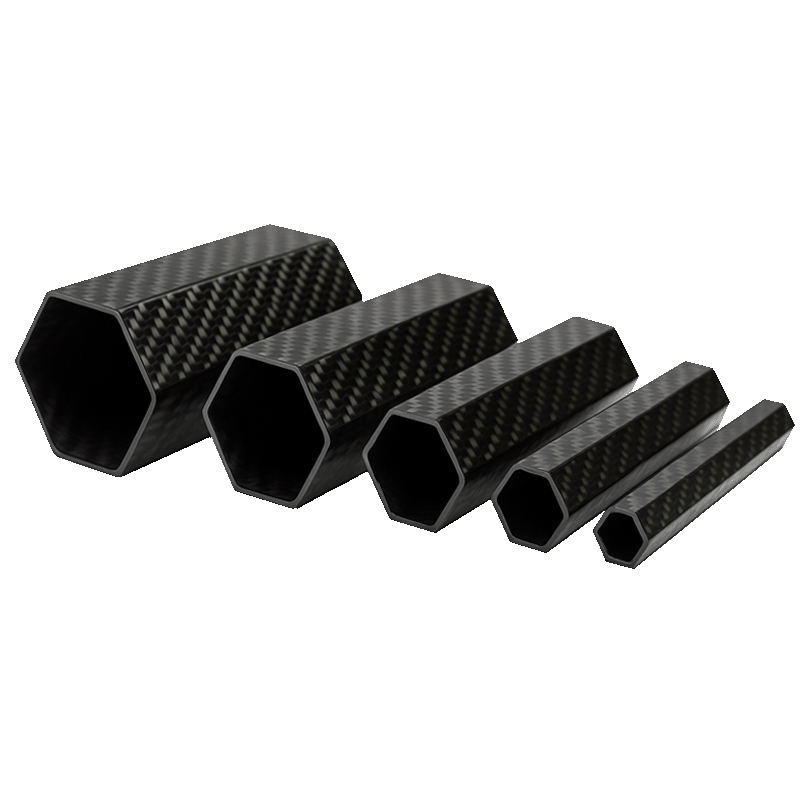

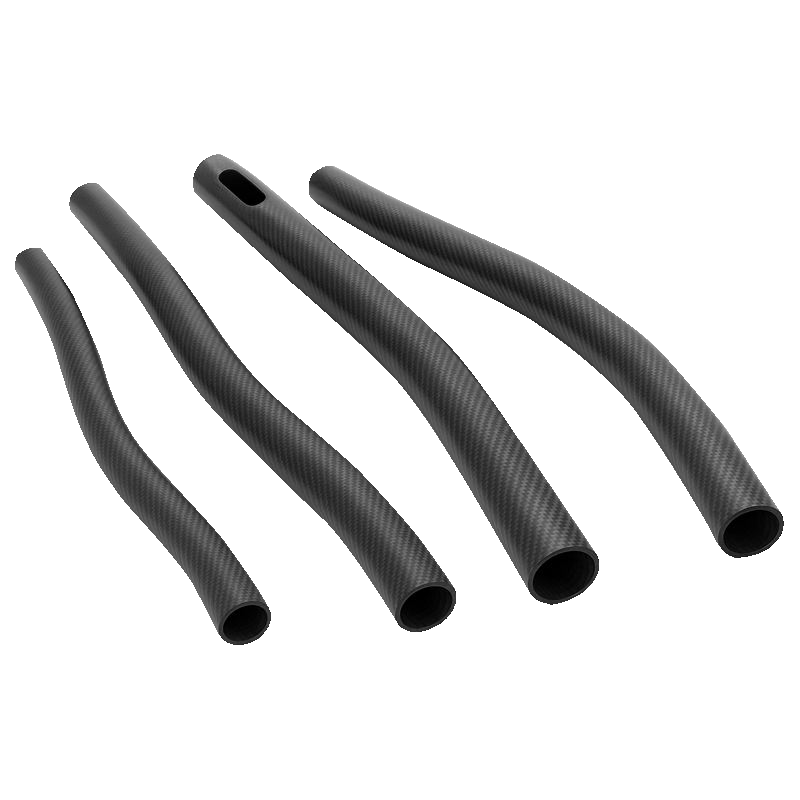

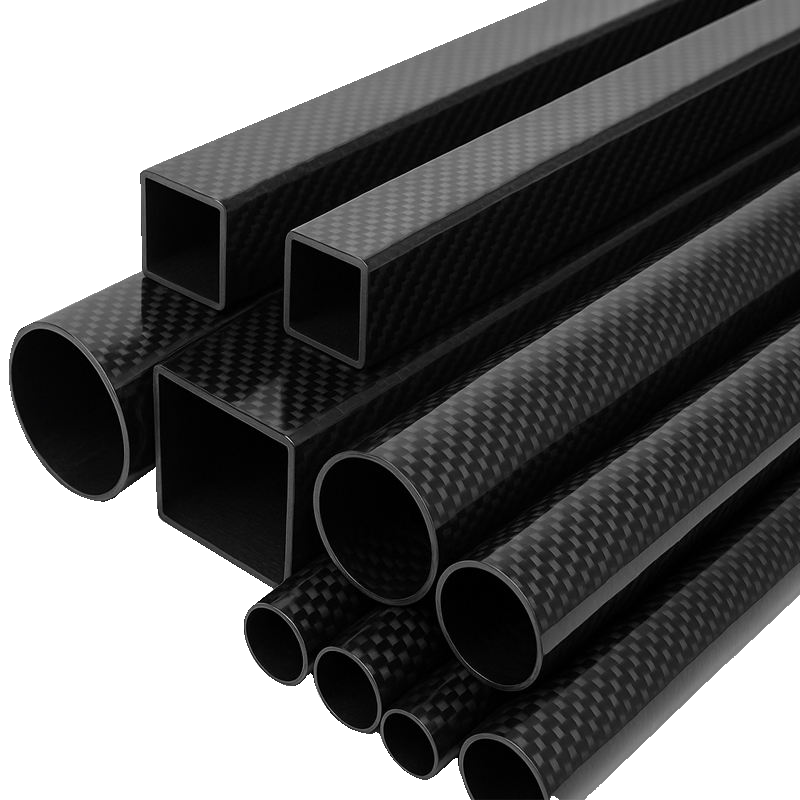

Carbon fiber tubing
Using high-quality carbon fiber raw materials and good basic resin, carbon fiber sheet has high tensile strength, corrosion resistance, shock resistance, impact resistance and other good properties.
|
workmanship |
Size |
Thickness |
Length |
Surface technology |
|
Rubbing tube |
φ8-80 |
1-4 |
1.2-3.5 |
Gloss or matte |
|
Pulling tube |
φ30-500 |
3-8 |
20 |
|
|
Entanglement tube |
φ50-1000 |
2-30 |
5-12 |
Remark: We can also do custom-made dimesions according to your requirements.
Characteristics and applications of carbon fiber
|
characteristic |
Application areas |
|
High specific strength, high elasticity |
Aviation, aerospace, transportation, wind turbines, civil engineering, pumping rods and so on |
|
Fatigue resistance |
Plate spring, helicopter rotor, high-speed rotary body and so on |
|
Thermal stability |
Electronic equipment, precision machining equipment, satellite equipment, instruments, weapons and equipment |
|
Conductivity |
Electrodes, composite core wire, electromagnetic shield and so on |
|
Anti-vibration attenuation performance |
Machine arm, racket, fishing rod, golf pole and so on |
|
Chemical stability |
C / C composite materials, high pressure vessels, chemical equipment and so on |
|
Corrosion resistance |
Chemical equipment, electrode materials, marine pipelines, oil tanks, building reinforcement materials |
|
Lightweight |
Automotive, aerospace, sporting goods and so on |
|
Non-toxic biological toxicity |
Medical supplies and so on |
Carbon fiber Application areas
Carbon fiber composite materials have the advantages of high temperature resistance, corrosion resistance, friction resistance, tight weight, high strength and good toughness. Due to its outstanding performance advantages, it has been used in many fields, but its main application fields are: aerospace, automobile manufacturing, industrial applica- tions, sporting goods, etc. Carbon fiber is widely used, and carbon fiber materials will be used to replace traditional materials in key parts of many equipment.
